Specification | Value |
|---|
Dimensions | |
Length | 58.75 in (149.2 cm) |
Width | 48 in (121.9 cm) |
Height (to top of beacon) | 56 in (142.2 cm) |
Weight & Capacity | |
Weight (with top tray) | 1081 lbs (490 kg) |
Max Carrying Payload | 1000 lbs (454 kg) |
Max Towing Payload | 5000 lbs (2268 kg) *will vary based on speed, terrain, and payload |
Performance | |
Max Speed | 5.8 mph (9.3 km/h) |
Range | 15 mi (24 km) *will vary based on speed, terrain, and payload |
Power | |
System Voltage | 48V |
Batteries | 2 x 51.2V 100Ah LFP |

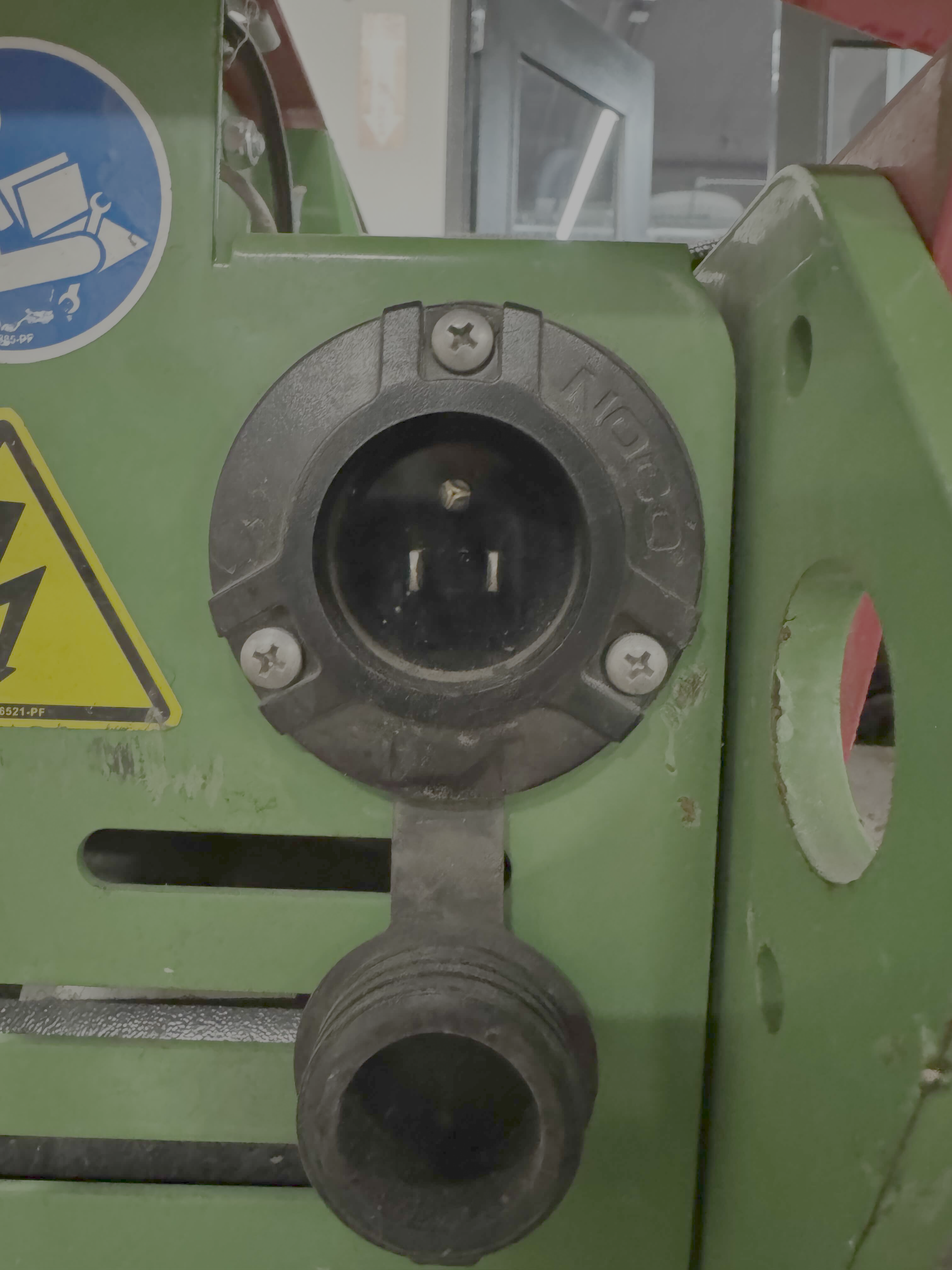

Charging Input | Standard Charger (50V - 20A) - North America
5-15R Receptacle
10-11A @ 110-120VAC Standard Charger (50V - 20A) - Rest of World (AU/NZ)

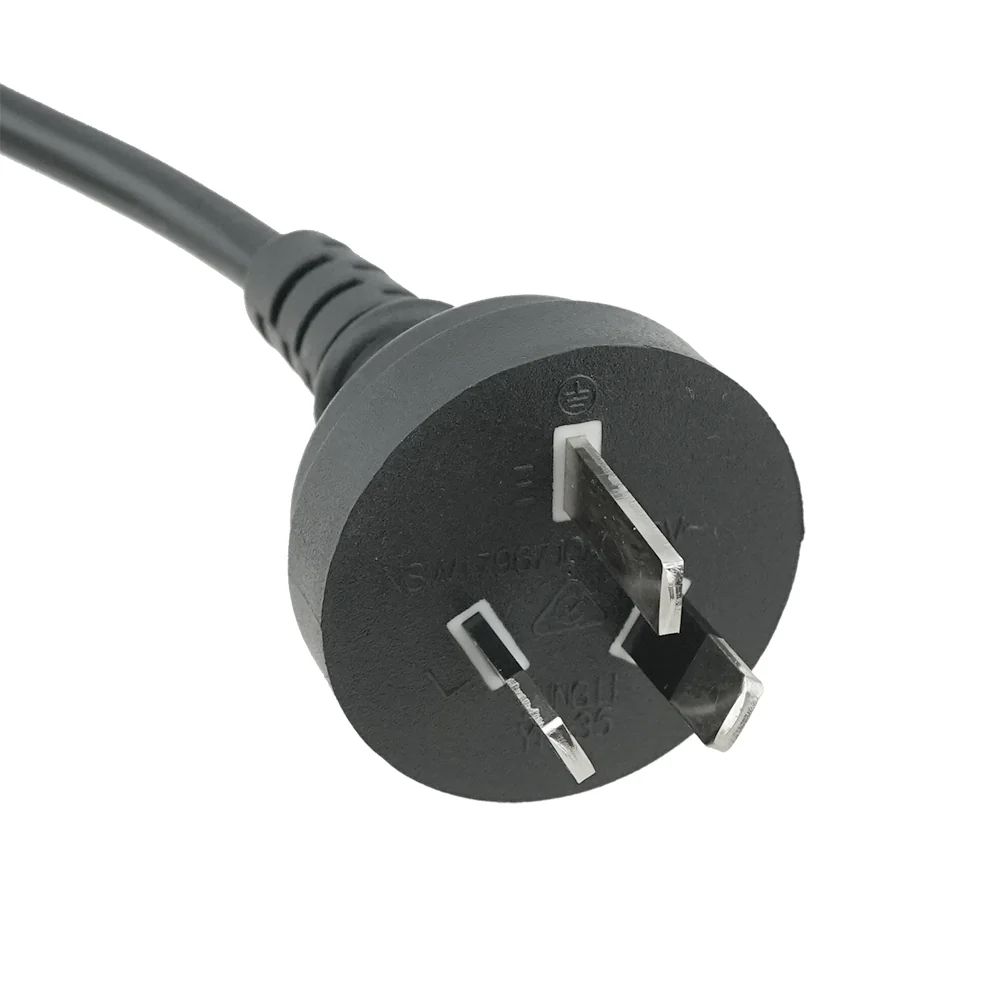

AS/NZS 3112 Plug
6A @ 220-240VAC Fast Charger (50V - 50A):
6-20P Cable Whip
15A @ 220VAC (Full-power)
15A @ 110-120VAC (Half-power: Requires Plug Adapter) |
Tires | |
Standard Tire | R3, 18 x 8.5-10 (tubeless) |
Wheel | 10 x 7, 1.5 in offset |
Tire Pressure | 22 psi |
