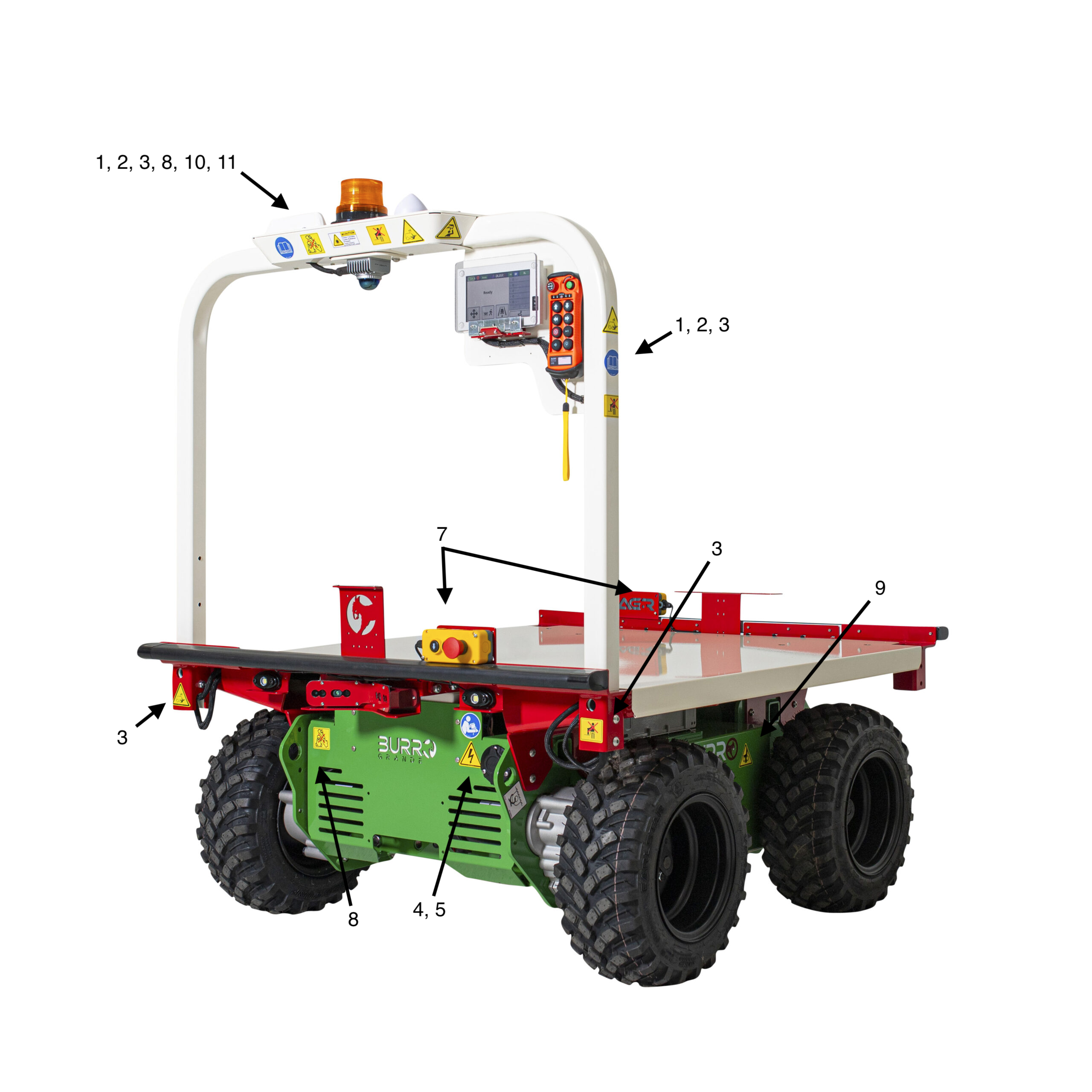

Label Index | Symbol / Design | Associated Risk & Meaning | Placement Location(s) |
1 |  Warning; Run over by remote operator controlled machine | Bystander Awareness: Warning of autonomous vehicle motion. | Front of crossbar (horizontal) and sides of crossbar (vertical). |
2 |  Read operator's manual | Read Operators Manual: UNderstanding proper operation is critical to ensuring safe use | Front of crossbar (horizontal) and sides of crossbar (vertical). |
3 |  No Riders Allowed | No Riding: Prevent accidents from unsafe operation. Do not sit, stand, or ride. | Front and sides of crossbar; must be visible when loaded. |
4 |  Warning; Electricity | Electrical Hazard: Warns of high voltage components. | Top of each battery housing (2) and near charger docking point. |
5 |  Read technical manual
| Read Technical Manual: Required before performing service or handling electronics. | Next to electrical hazard labels on battery boxes and charger point. |
6 |  Tie down point | Tie-Down Locations: Safe points for securing the vehicle during transport. | All four corners of the frame, specifically by the tie-down points. |
7 |  Forward, Reverse, Stop | Button Box Labeling: Clear identification of Forward, Reverse, and Emergency Stop. | Directly on the yellow button boxes at the front and rear. |
8 | | No Power Washing: Prevent high-pressure water damage to sensitive electronics. | Front of Burro chassis, rear of chassis, and on the crossbar. |
9 |  Hand Entanglement | Pinch Points: Prevent hand injuries near moving parts or battery housings. | On both battery boxes, specifically next to the tires. |
10 | | Laser Light (LiDAR): Invisible laser radiation. Avoid long-term viewing of the sensor. | On the crossbar, immediately adjacent to the LiDAR sensor. |
11 |  Overhead Obstacle | Head Hazard: Warning of low-clearance crossbar. | Centered on the crossbar. |
