Maintenance

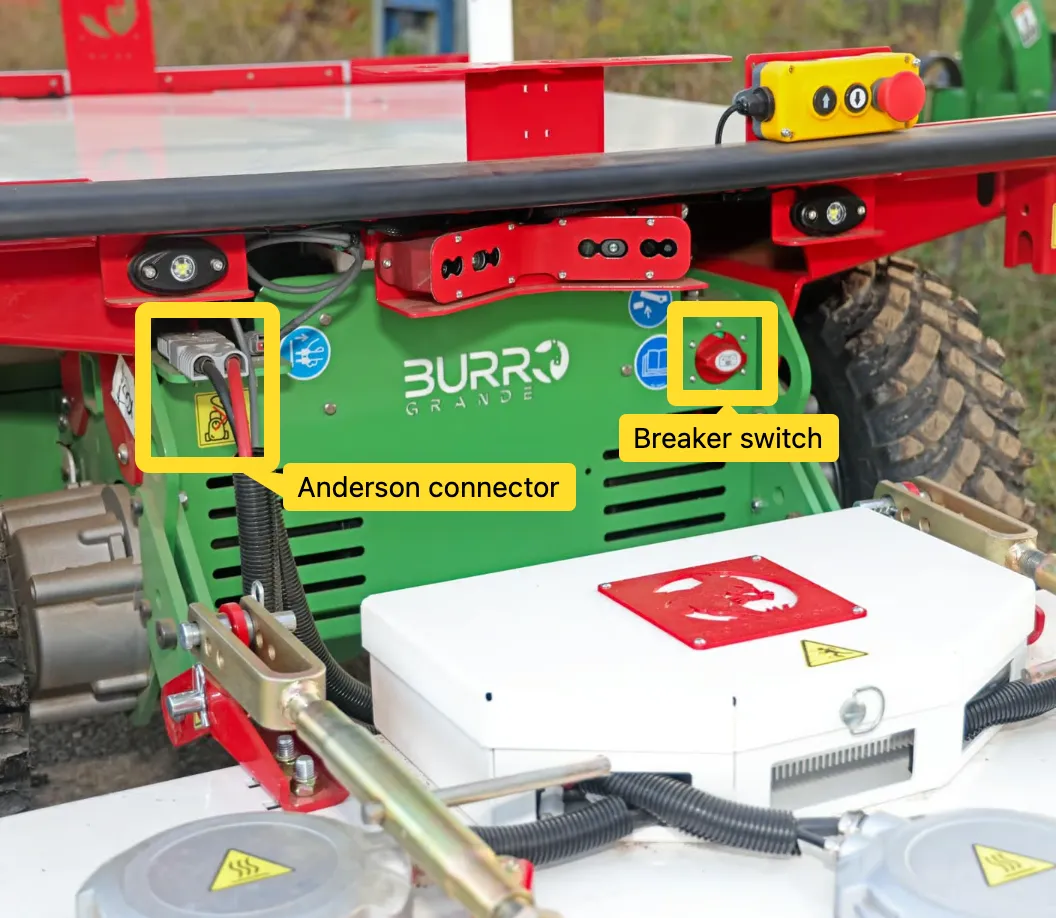

Disconnecting the mower
To prevent personal injuries while working on the mower deck, ensure that the breaker switch is flipped to the ‘OFF’ position or the Anderson connector is completely unplugged.

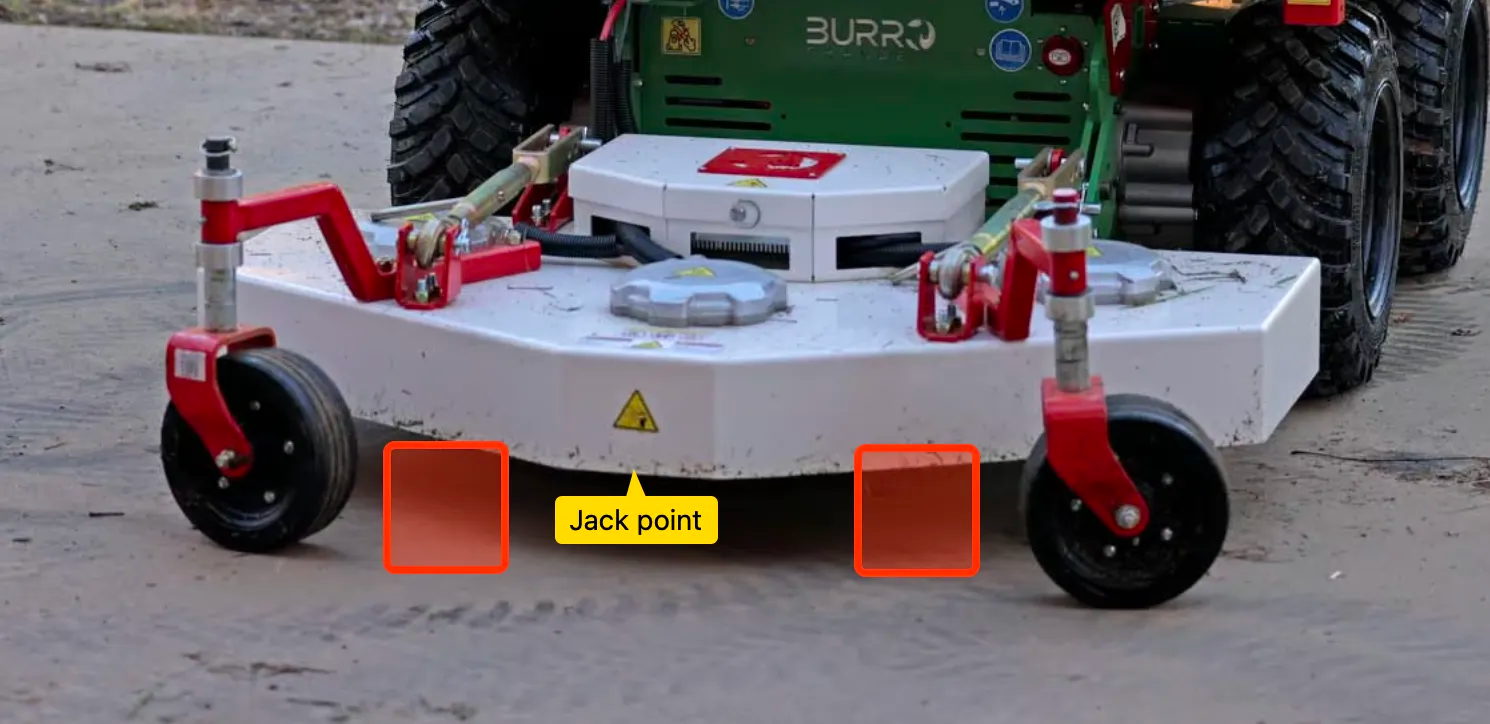

Lifting Up the Deck
Jack Stands1
Use a jack to lift up the deck by using the outer edge of the mower deck as the jack point.
Weight Consideration:2
The mower deck currently weighs approximately 300 lbs. Use an appropriate lifting device or get someone to help. Improper lifting techniques can cause muscle strain or back injury. Always use lifting aids and proper lifting techniques when trying to lift the mower deck.
Lift the deck3
Jack up the mower until the wheels are off the ground.

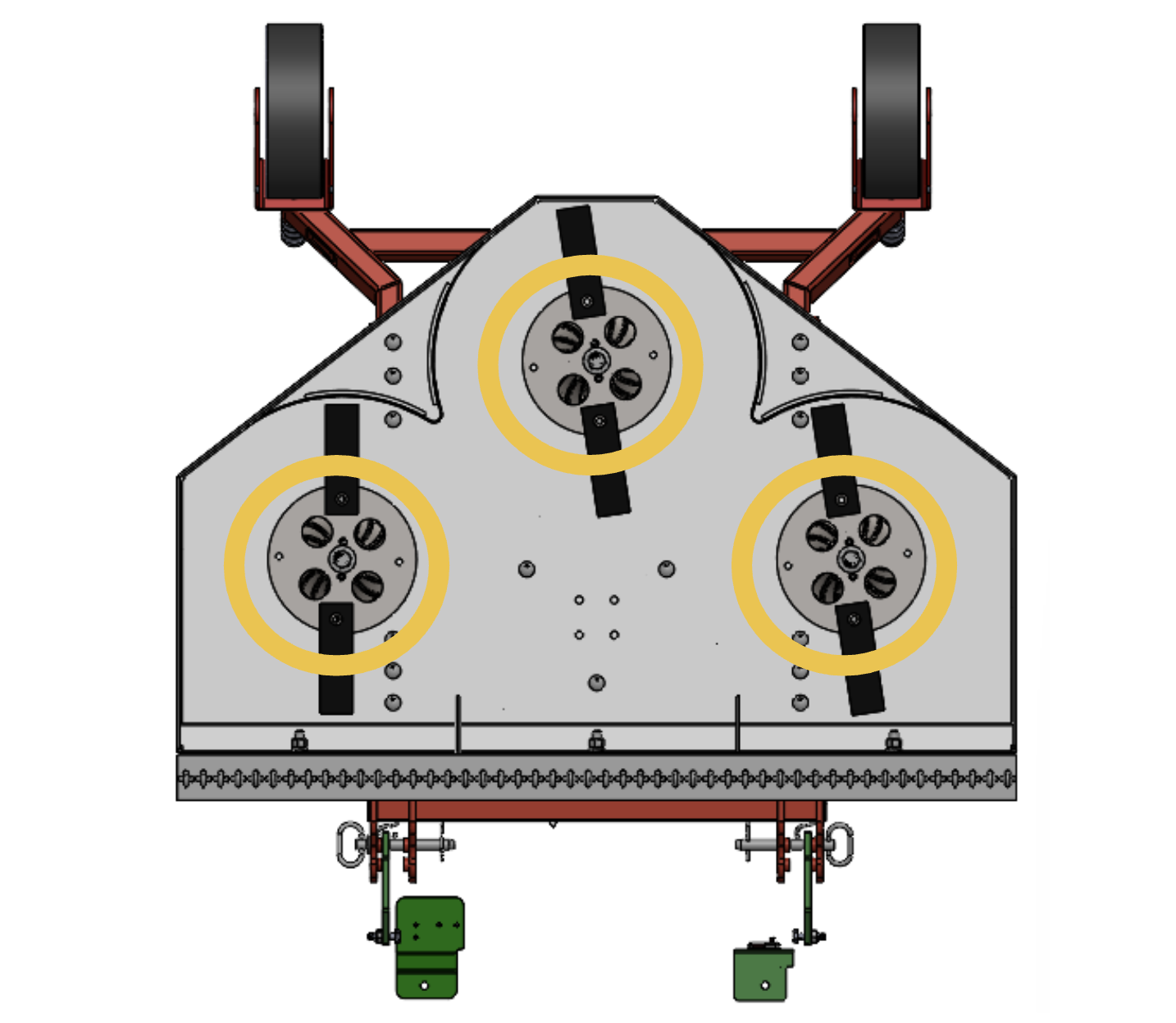

Cleaning the Cortador Deck
Pressure Washing1
Flush clippings from the underside of the mower with compressed air or a pressure washer set to low pressure.
Dried clippings2
If clippings and dirt are dried, scrape the underside of the mower clean.
Chipped areas3
Re-paint chipped areas to prevent rust
Maintenance Schedule
