Attach & Detach

Turn off he Breaker Switch1

Turn the breaker switch (pictured below) toward the left.

Unplug the connectors2

Unplug the Red & Black Anderson connector cable on the top left. You'll also find another 'CAN' connector on the right side of the Grande.

Support the Cortador deck3

Add wooden blocks under the front and rear side walls of the deck to support the deck.

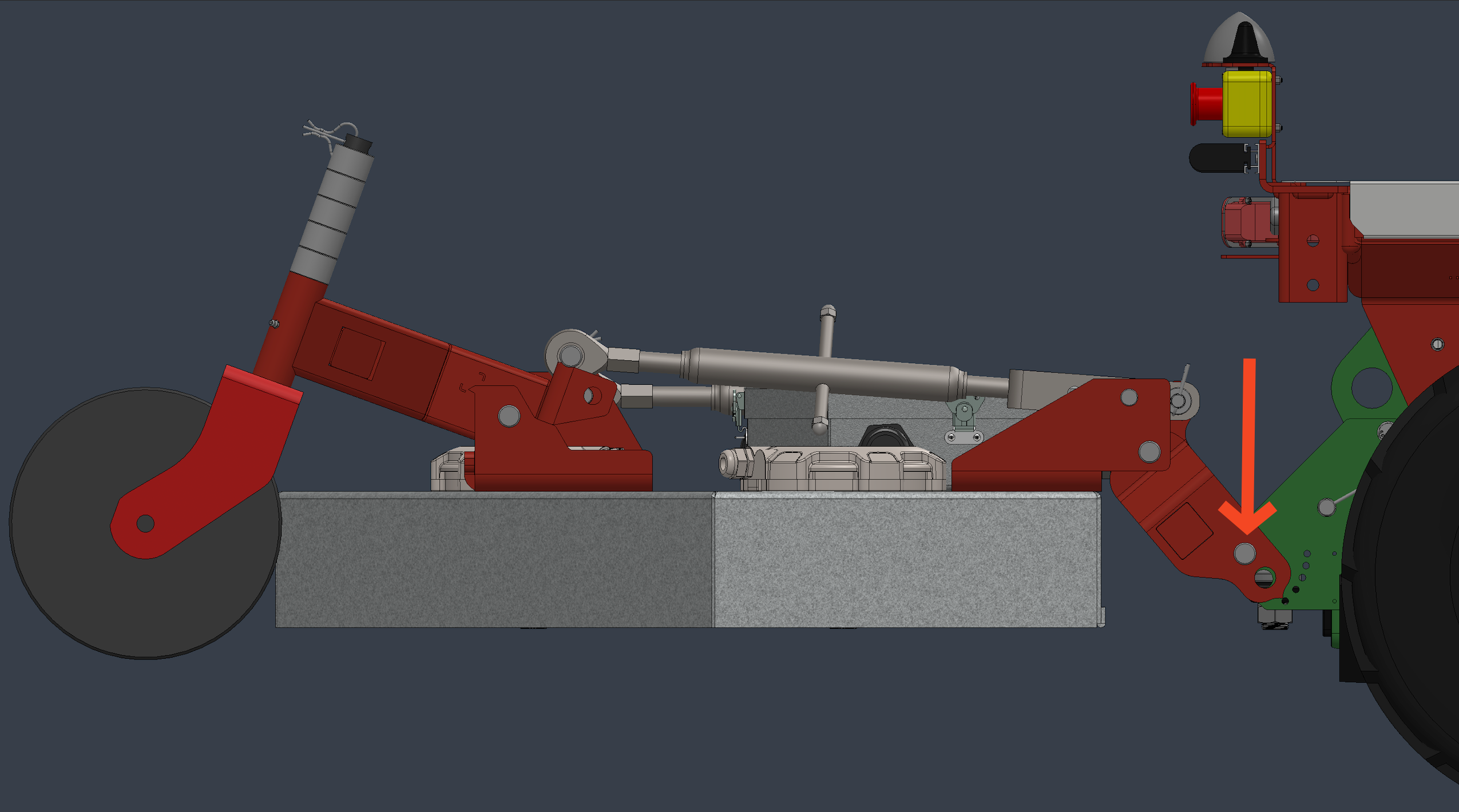

Remove the cotter pins4

Remove the cotter pins on the mounting mechanism connecting the Cortador to the Grande. You may need to adjust the height of the deck height using the top links to release any tension from the pins so they can slide out easily.

Move the Grande5

Once the pins are off, you can move the Grande forward to detach the deck from the Grande. Use the remove to move the Grande and detach the deck

Support the Cortador deck1

Make sure the deck is supported by wooden blocks under the front and rear side walls of the deck. This wil make it easier to align the deck with the brackets on the Grande

Align the Grande with the brackets on the mower2

Move the Grande to align the brackets on the Grande with the holes on the mower deck. Try to align the Grande as close to the deck as possible.

Drive the Grande back3

Back up the Grande so the brackets on the deck fit around the brackets on the Grande.

Align the holes4

You may need to adjust the height of the deck using the turnbuckles to release any tension from the pins so they can slide out easily.

Insert the cotter pins5

Once aligned, insert the cotter pins on the mounting mechanism connecting the Cortador to the Grande. Lock them using the provided clips.

Plug in the connectors6

Plug in the Red & Black Anderson connector cable on the top left. You'll also find another 'CAN' connector on the right side of the Grande that needs to be plugged in.

Turn the breaker ON7

Turn the breaker switch ON, to enable the communication to the mower motors.
