Location of Safety Signs
Location of Safety Signs

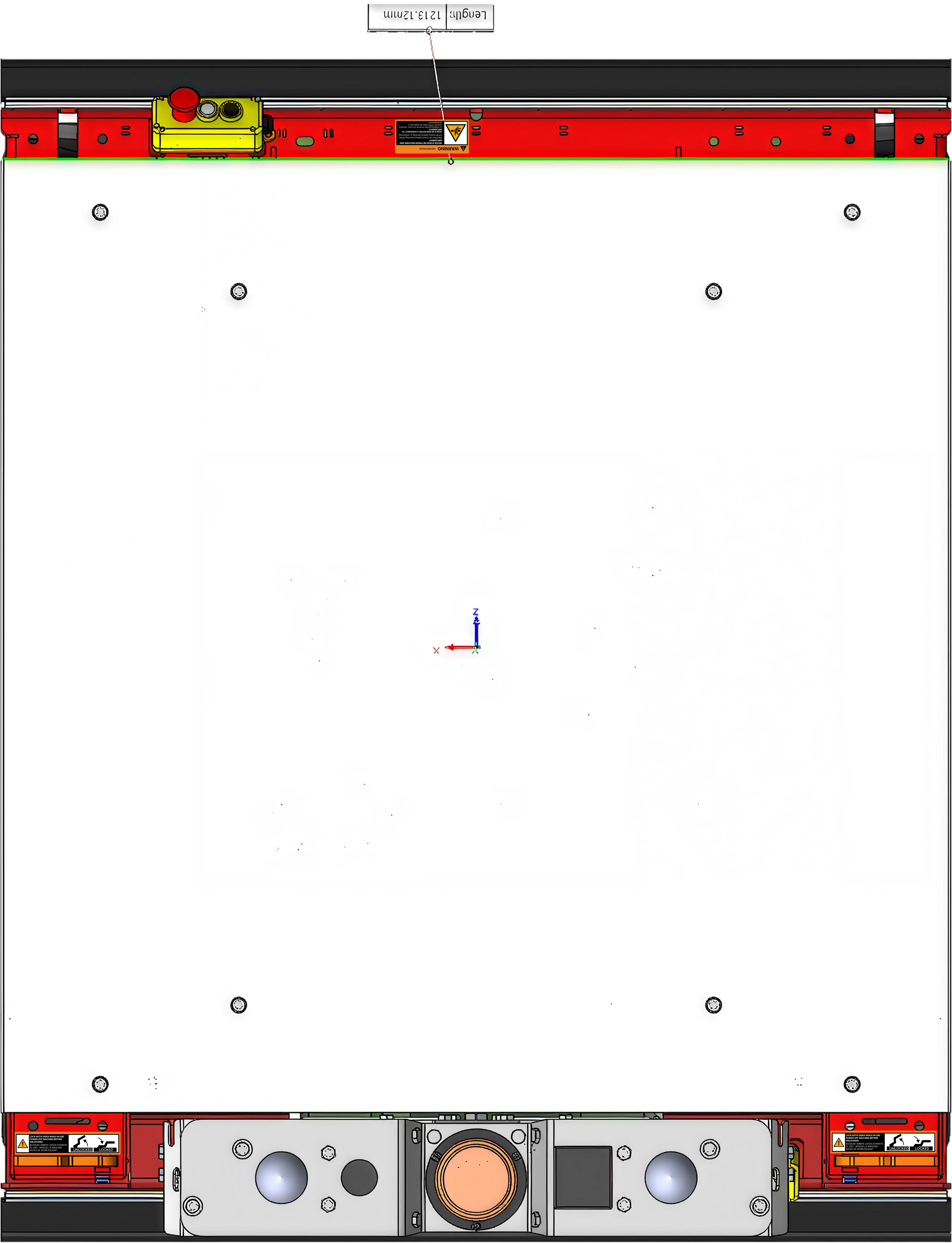

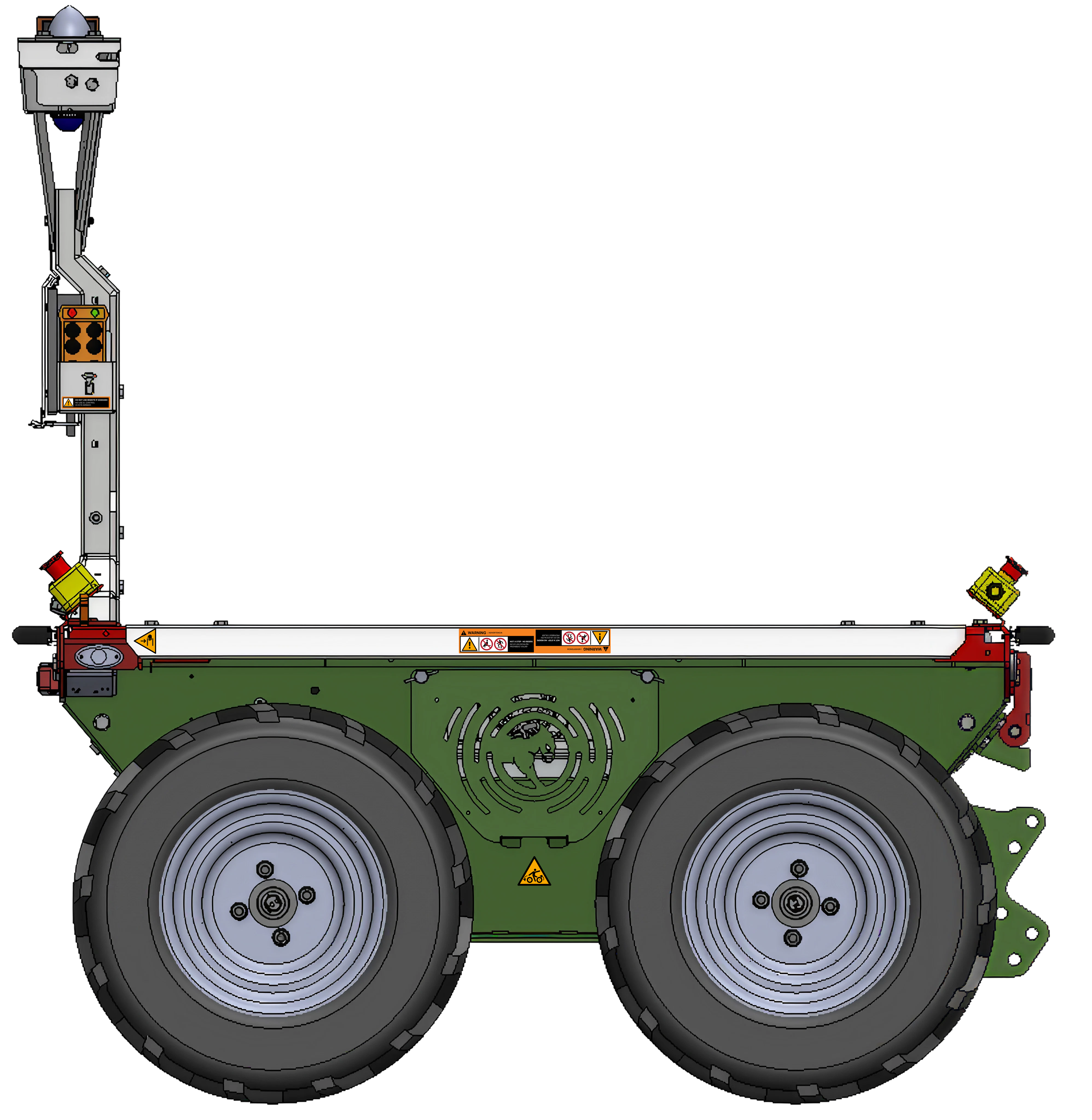

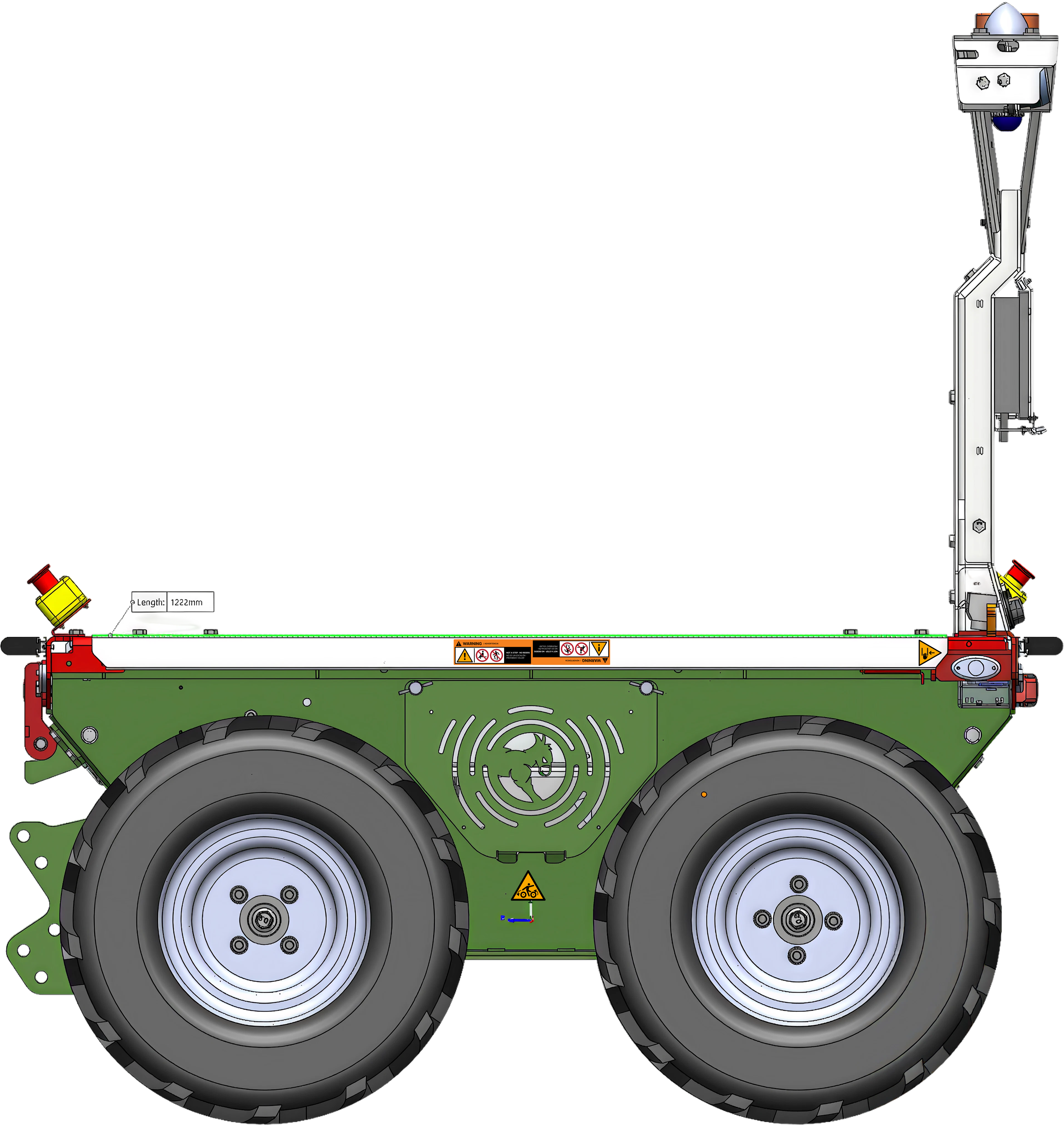

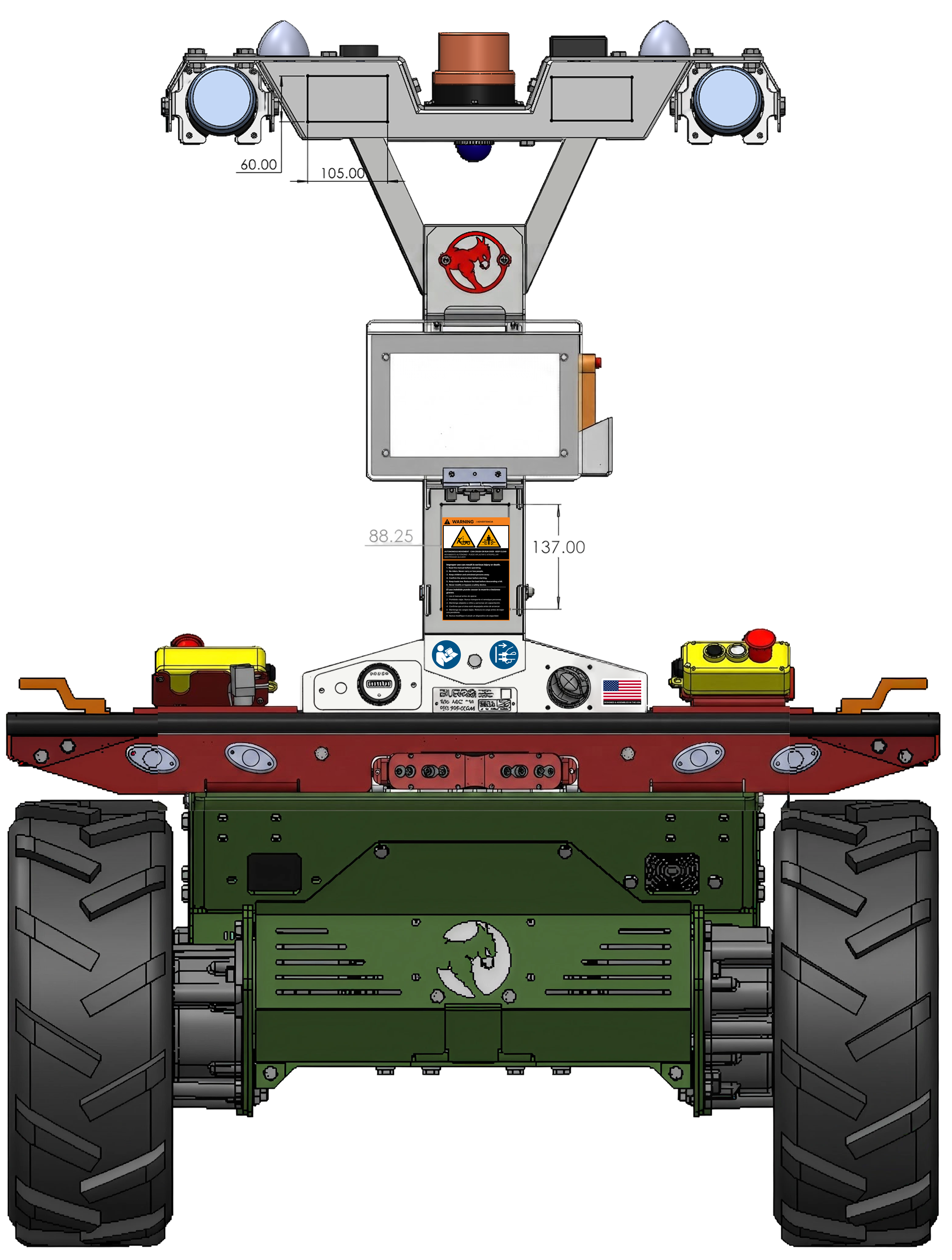

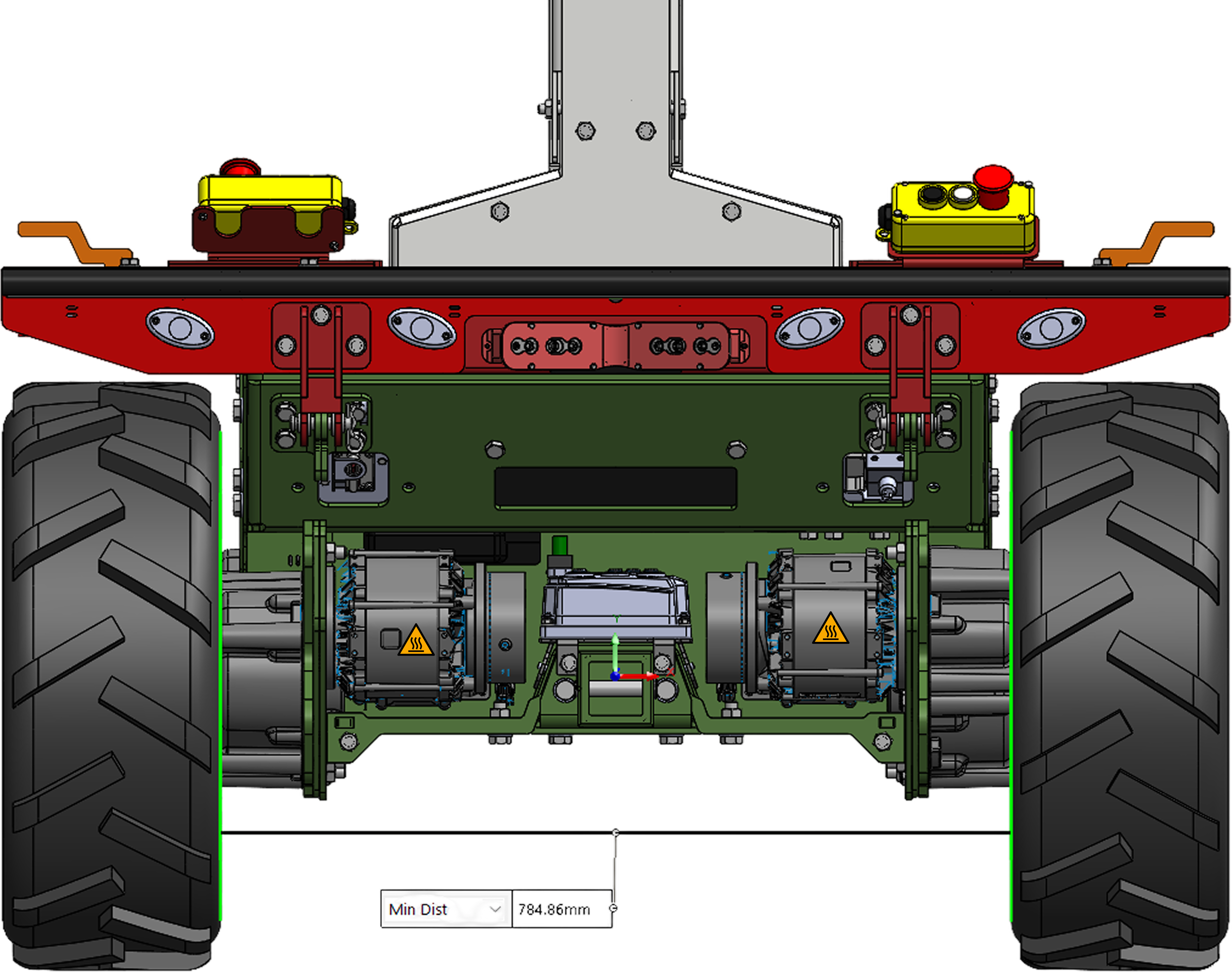

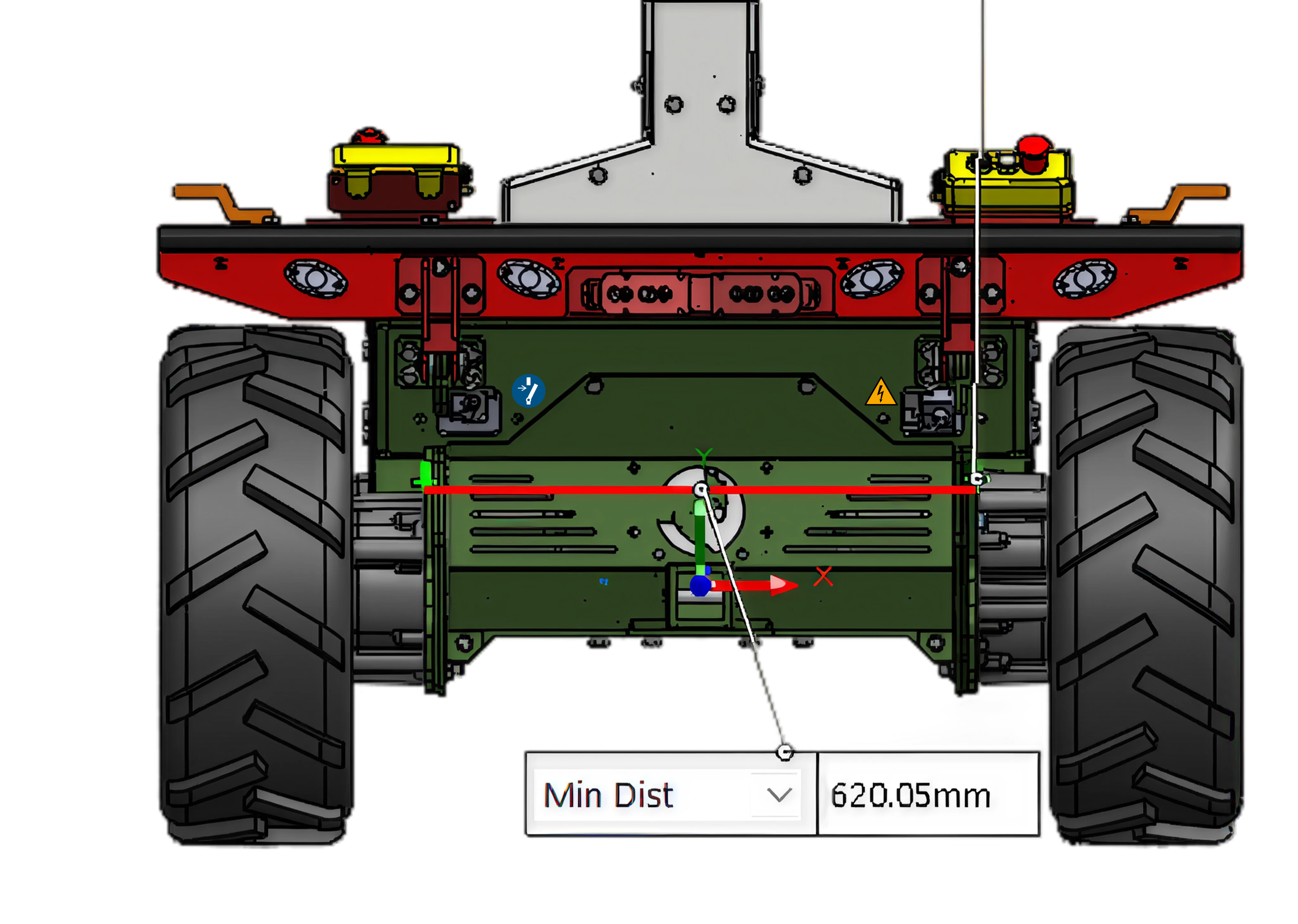

The diagrams below illustrate the location of all safety labels on the machine. Each label is critical for safe operation. Do not operate the machine if any labels are missing or illegible. Contact Burro support for replacements.
 | ||
 |  |  |
 |  |  |
 | ||
Safety Label Descriptions and Meanings

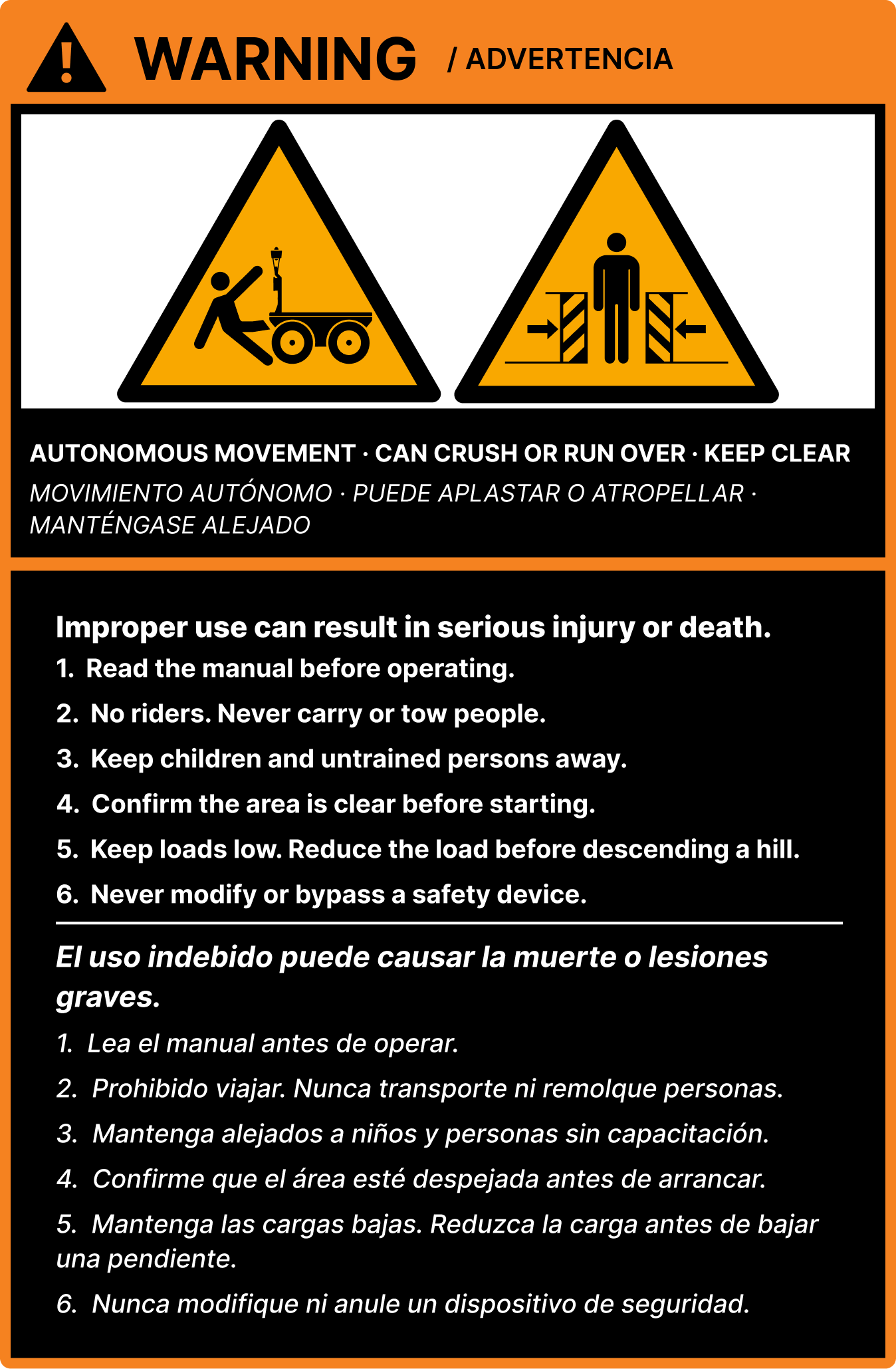

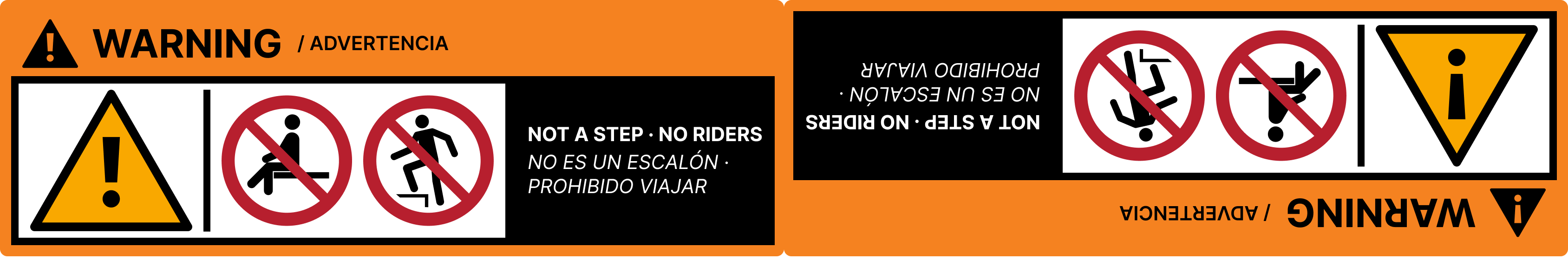

Label Index | Symbol / Design | Associated Risk & Meaning | Placement Location(s) |
1 | .png?width=3840&quality=90&format=auto) | Autonomous Movement & Improper Use: The machine moves autonomously and can crush or run over a person; keep clear. Improper use can result in serious injury or death: read the manual before operating, no riders, keep children and untrained persons away, confirm the area is clear before starting, keep loads low and reduce the load before descending a hill, and never modify or bypass a safety device. | Mast, below the screen (×1). |
2 | .png?width=3840&quality=90&format=auto) | No Step / No Riders: The bed rail is not a step. Do not sit, stand, or ride on the machine. | Bed rail midspan, left and right sides (×2). |

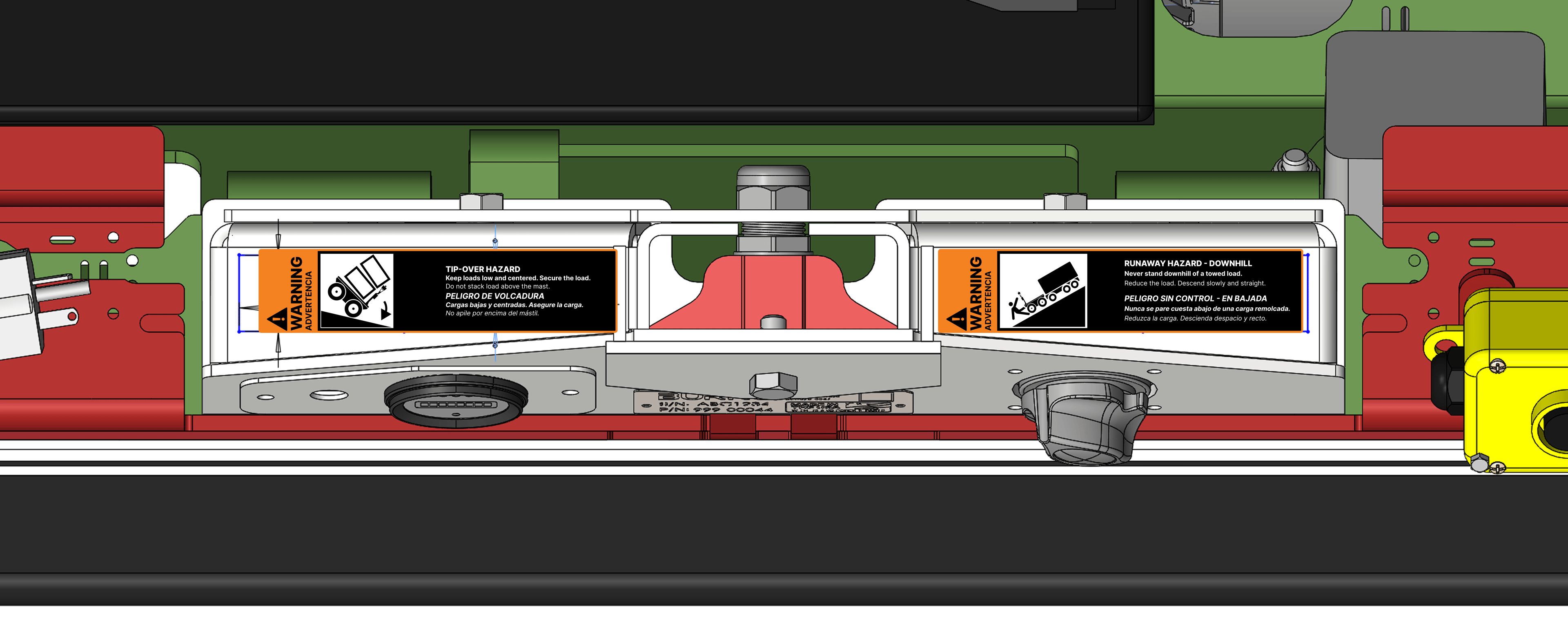

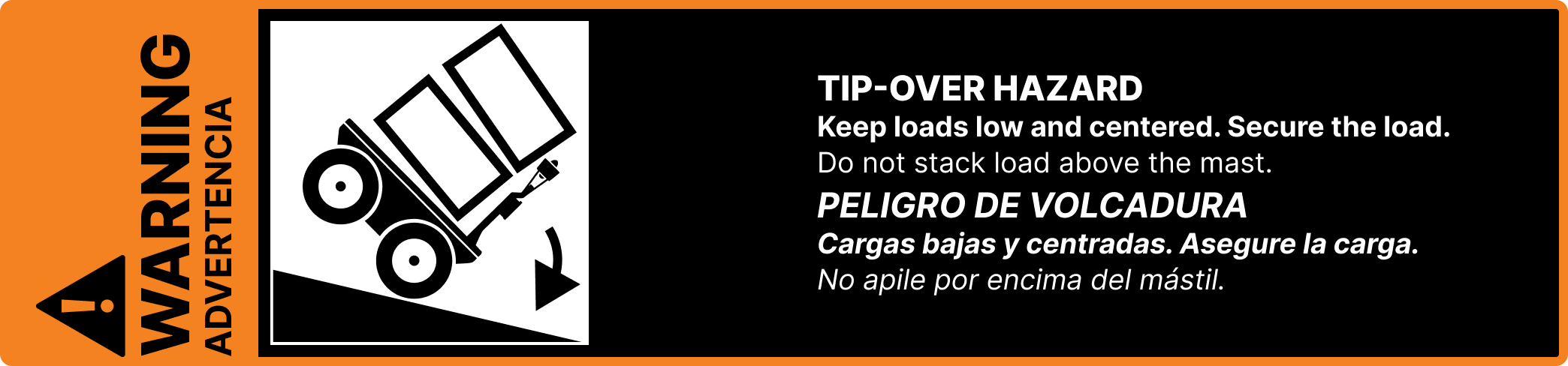

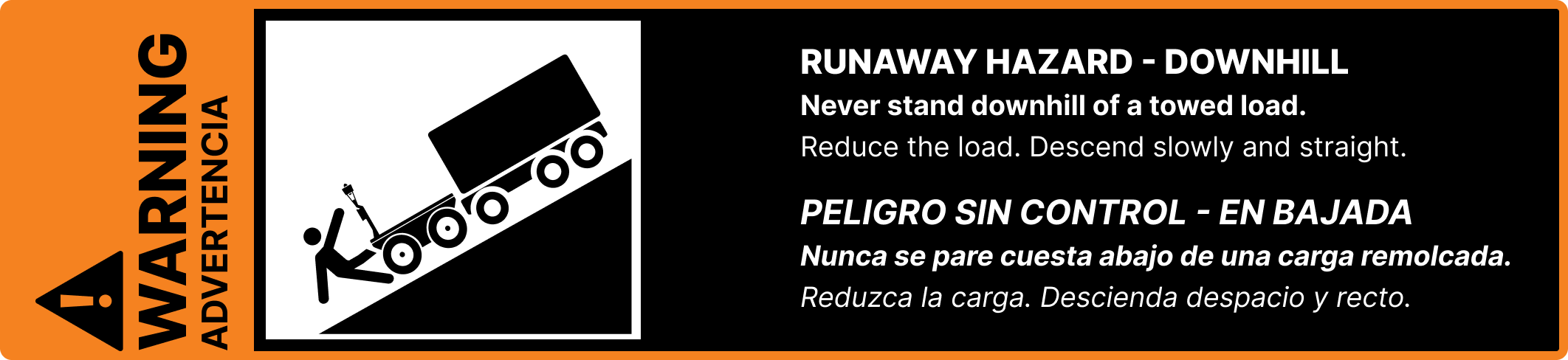

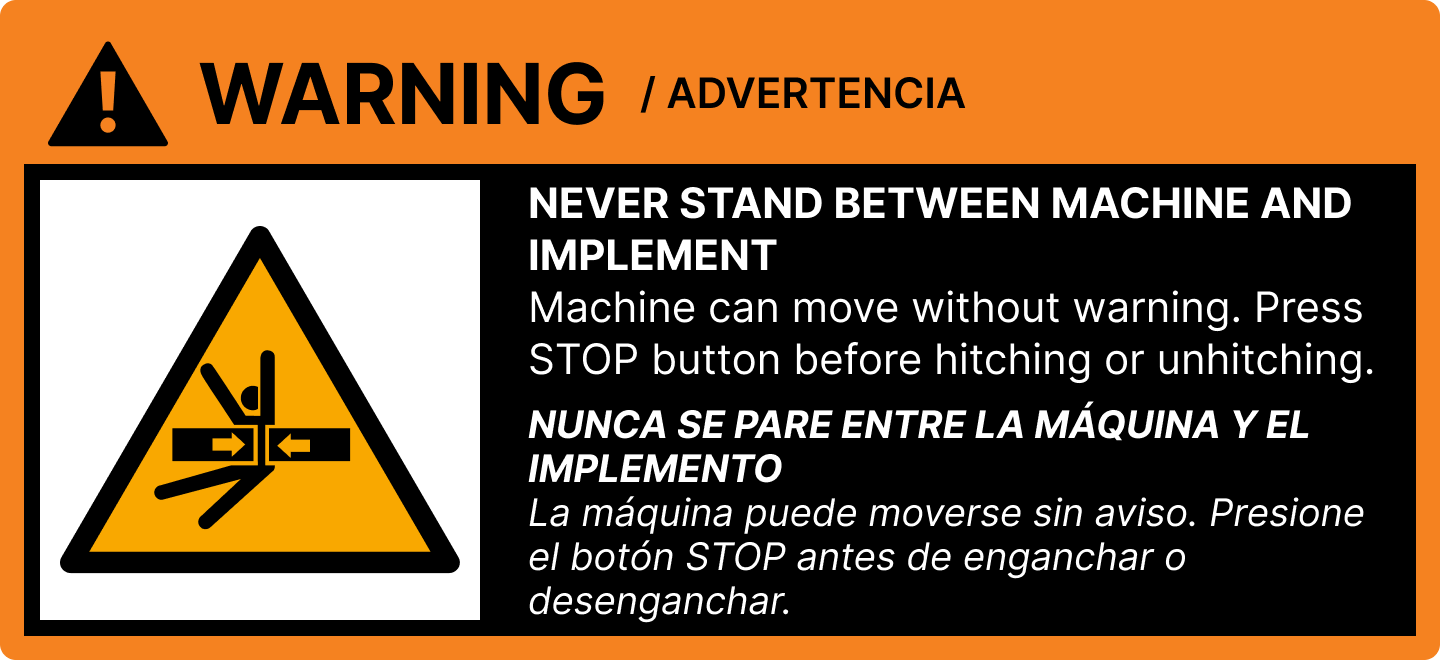

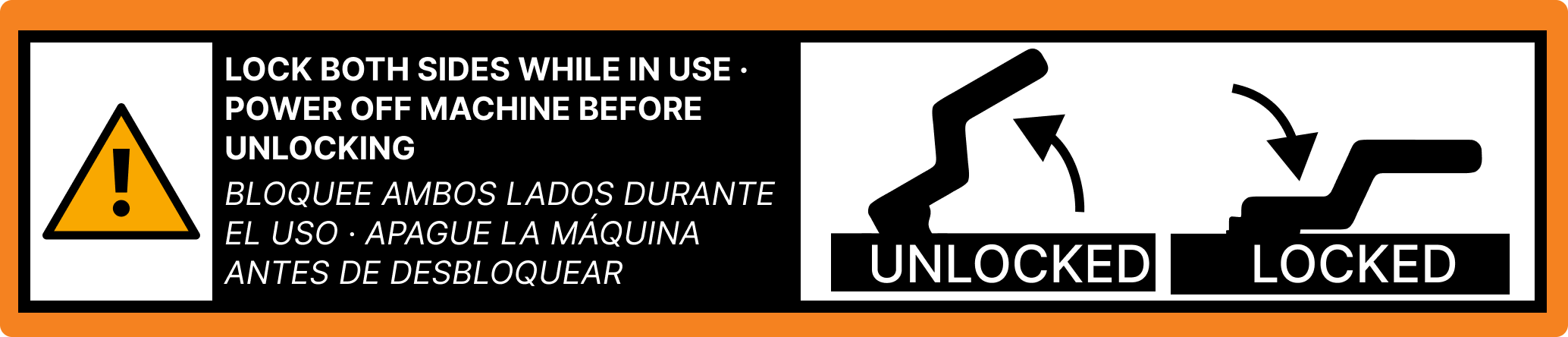

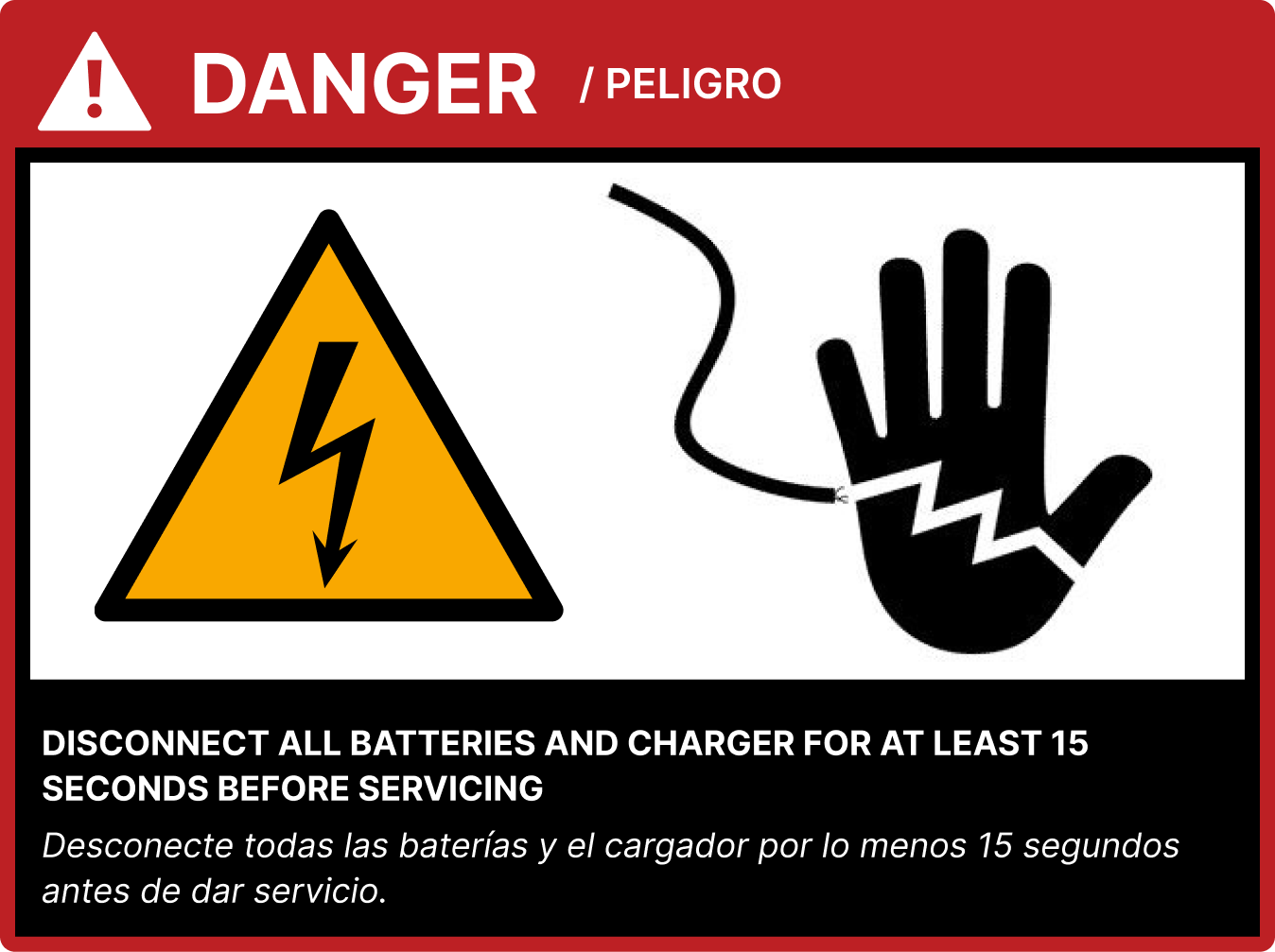

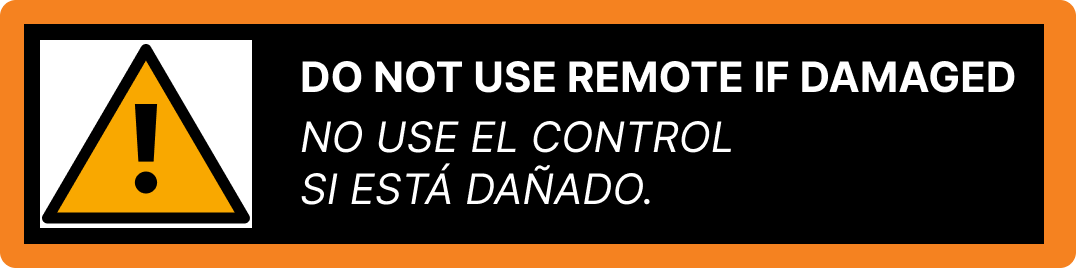

3 | .png?width=3840&quality=90&format=auto) | Tip-Over Hazard: Keep loads low and centered and secure the load. Do not stack the load above the mast. | Top of the mast base, above the battery indicator (×1). |
4 | .png?width=3840&quality=90&format=auto) | Runaway Hazard – Downhill: Never stand downhill of a towed load. Reduce the load and descend slowly and straight. | Top of the mast base, above the power switch (×1). |
5 | .png?width=3840&quality=90&format=auto) | Never Stand Between Machine and Implement: The machine can move without warning. Press the STOP button before hitching or unhitching. | Left of the rear button box (×1). |
6 | .png?width=3840&quality=90&format=auto) | Bed Latch: Lock both sides of the bed while in use. Power off the machine before unlocking. | Bed latch, robot's left side, near the lift handle (×1). |
7 | .png?width=3840&quality=90&format=auto){kind=icon} | Crushing of Hands (ISO W024): Pinch point. Keep hands clear when raising or lowering the cargo bed. | Side of the cargo bed at the front of the robot, rotated 90° so it is visible when the tray is flipped up (×2). |
8 | .png?width=3840&quality=90&format=auto){kind=icon} | Wheel Entanglement: Rotating wheels can catch and pull in hands, feet, or clothing. Keep clear of the wheels while the machine is powered. | Between the wheels on each side (×2). |
9 | .png?width=3840&quality=90&format=auto) | Electrical Danger: Disconnect all batteries and the charger for at least 15 seconds before servicing. | Electrical box lids (×2). |
10 | .png?width=3840&quality=90&format=auto){kind=icon} | Electrical Hazard (ISO W012): Electrical components. Risk of shock or burns. | Power disconnects and left of the EPTO (×3). |
11 | .png?width=3840&quality=90&format=auto){kind=icon} | Hot Surface (ISO W017): Motors can become hot during operation. Do not touch until cooled. | On each motor (×4). |
12 | .png?width=3840&quality=90&format=auto){kind=icon} | Disconnect Before Maintenance (ISO M021): Disconnect power at the breaker before carrying out maintenance or repair. | To the right of the breaker on the rear of the robot (×1). |
13 | .png?width=3840&quality=90&format=auto){kind=icon} | Disconnect Mains Plug (ISO M006): Unplug the charger before turning the machine on and before servicing. | Front of the mast base, right of the center bolt (×1). |
14 | .png?width=3840&quality=90&format=auto){kind=icon} | Read Operator's Manual (ISO M002): Read and understand this manual before operating or servicing the machine. | Front of the mast base, left of the center bolt (×1). |
15 | .png?width=3840&quality=90&format=auto) | Damaged Remote: Do not use the remote control if it is damaged. | Remote holder (×1). |

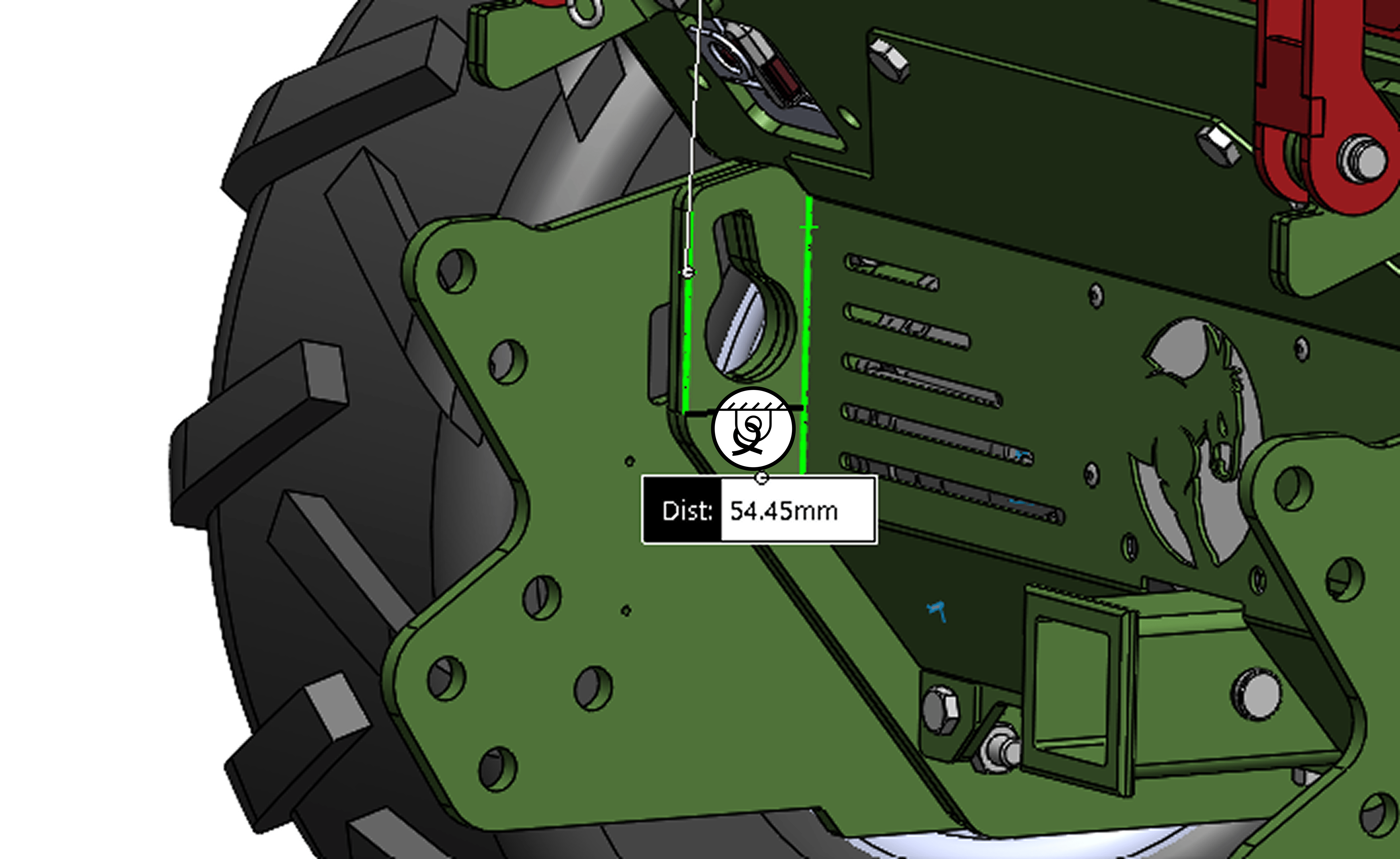

16 | .png?width=3840&quality=90&format=auto){kind=icon} | Tie-Down Point: Designated points for securing the machine during transport. | Below each tie-down point, 2× front and 2× rear (×4). |
Informational and Service Labels
Label Index | Symbol / Design | Associated Risk & Meaning | Placement Location(s) |

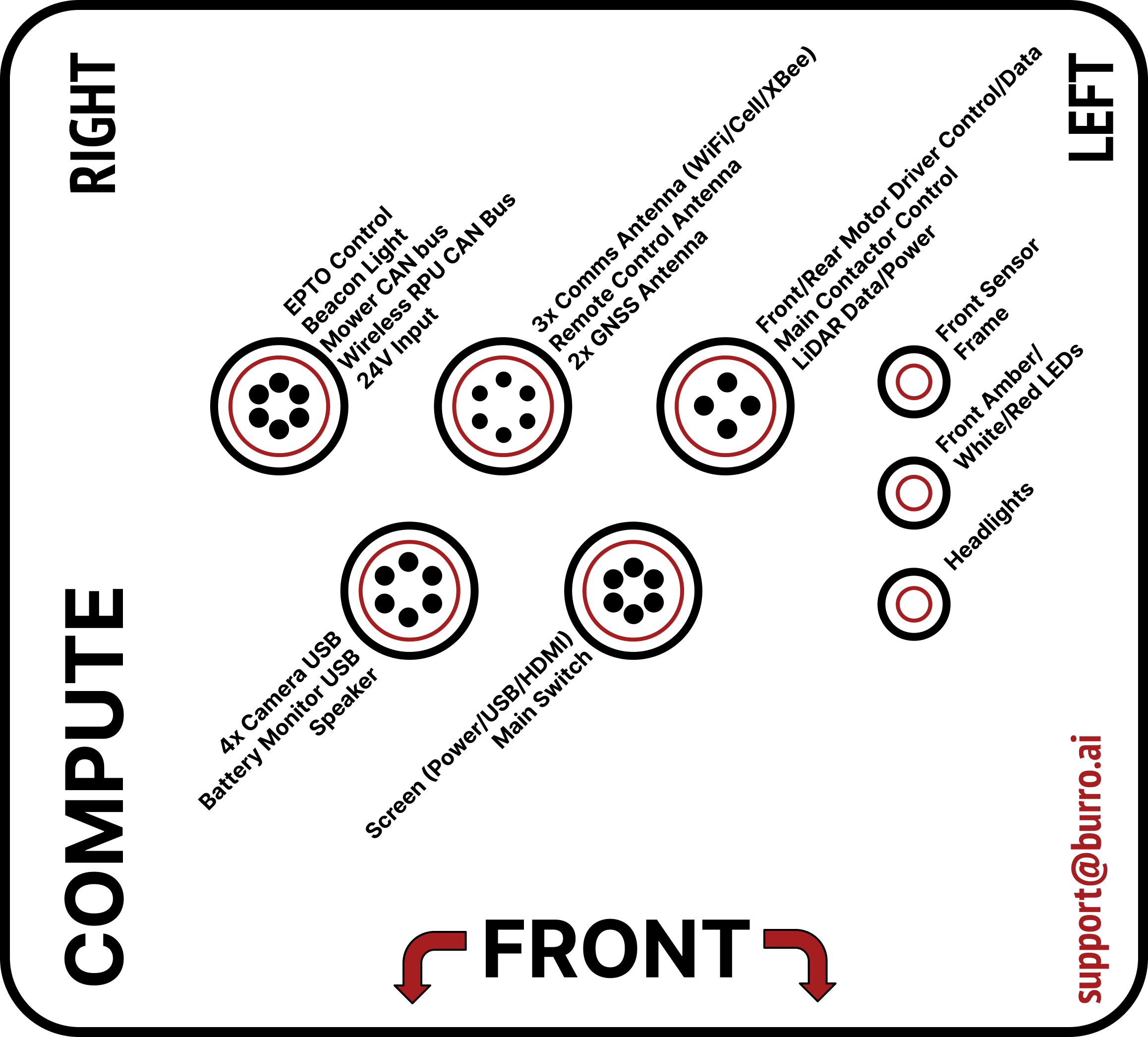

17 | .png?width=3840&quality=90&format=auto) | Compute Box Wiring (Front): Service diagram for the compute box connections. For qualified service personnel. | Compute box lid (×1). |

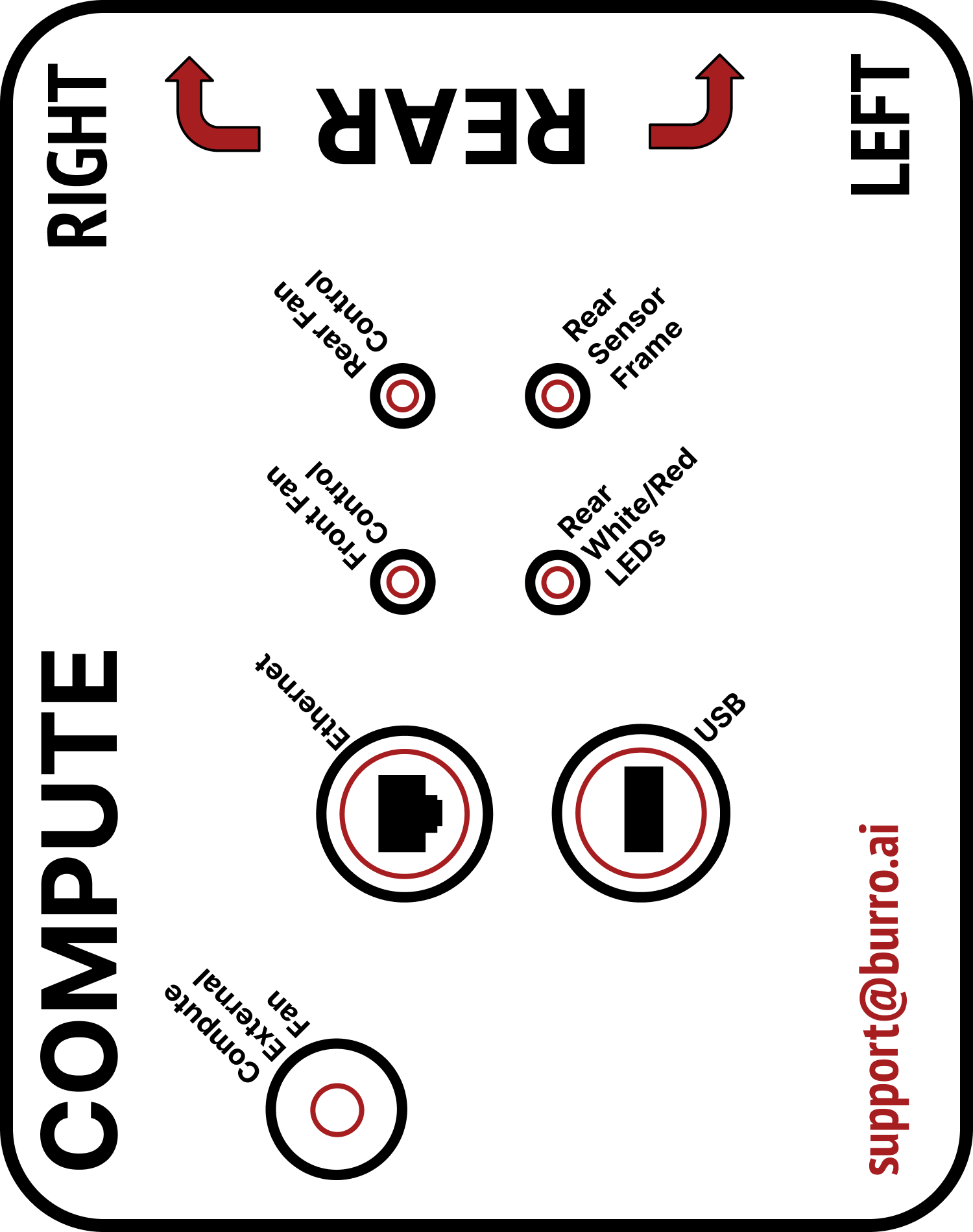

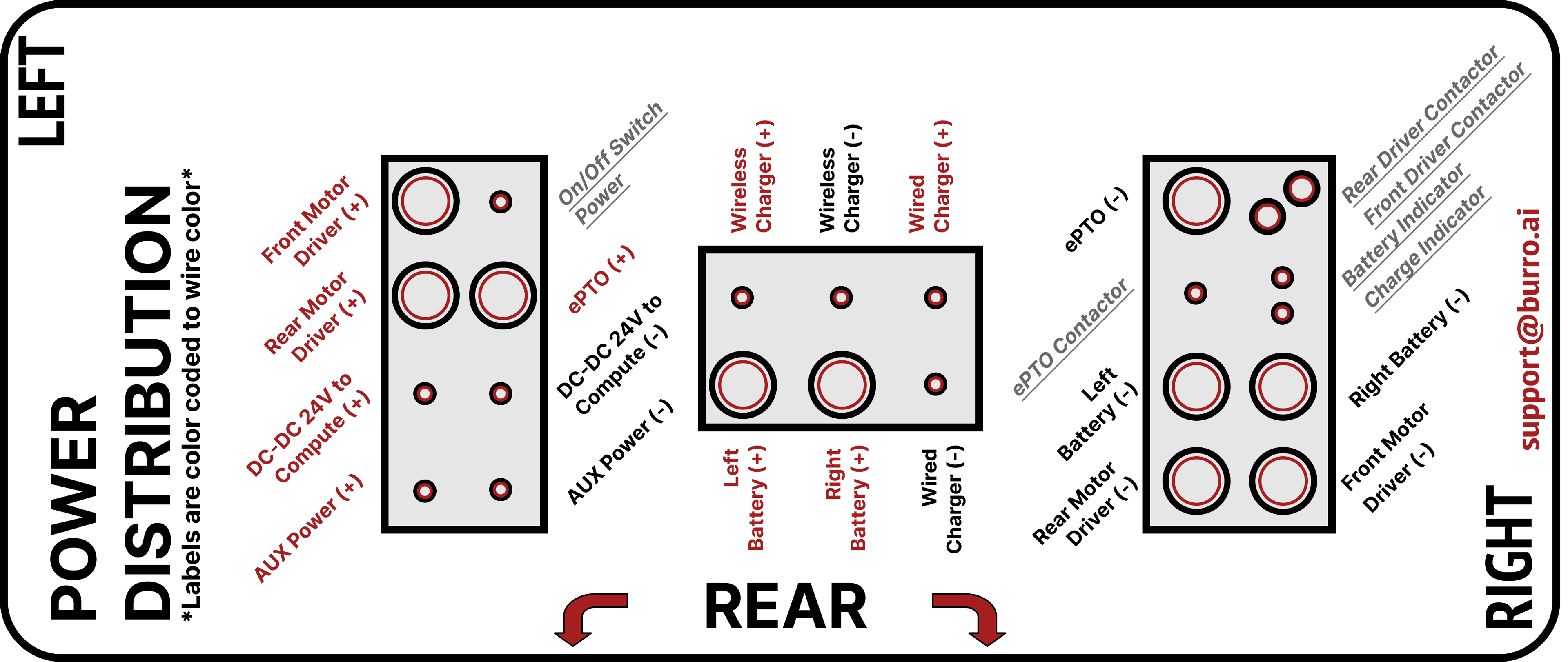

18 | .png?width=3840&quality=90&format=auto) | Compute Box Wiring (Rear): Service diagram for the compute box connections. For qualified service personnel. | Compute box lid (×1). |
19 | .png?width=3840&quality=90&format=auto) | Power Enclosure (Rear): Service diagram for the power enclosure. For qualified service personnel. | Power Enclosure (×1). |
20 | .png?width=3840&quality=90&format=auto) | Country of Origin: Made in USA identification. | Front of the mast base, right of the power switch (×1). |
