Exclusion Zones
Exclusion Zones are used to define areas that should be avoided during area path generation. These zones help account for obstacles such as trees, ditches, or buildings when creating mowing or other area coverage paths.
Note: Exclusion Zones do not prevent a Burro from traveling through them during autonomy or manual control. They only impact the area generation tool that creates paths.
How to Create and Use Exclusion Zones
Open your map in BOSS Web.

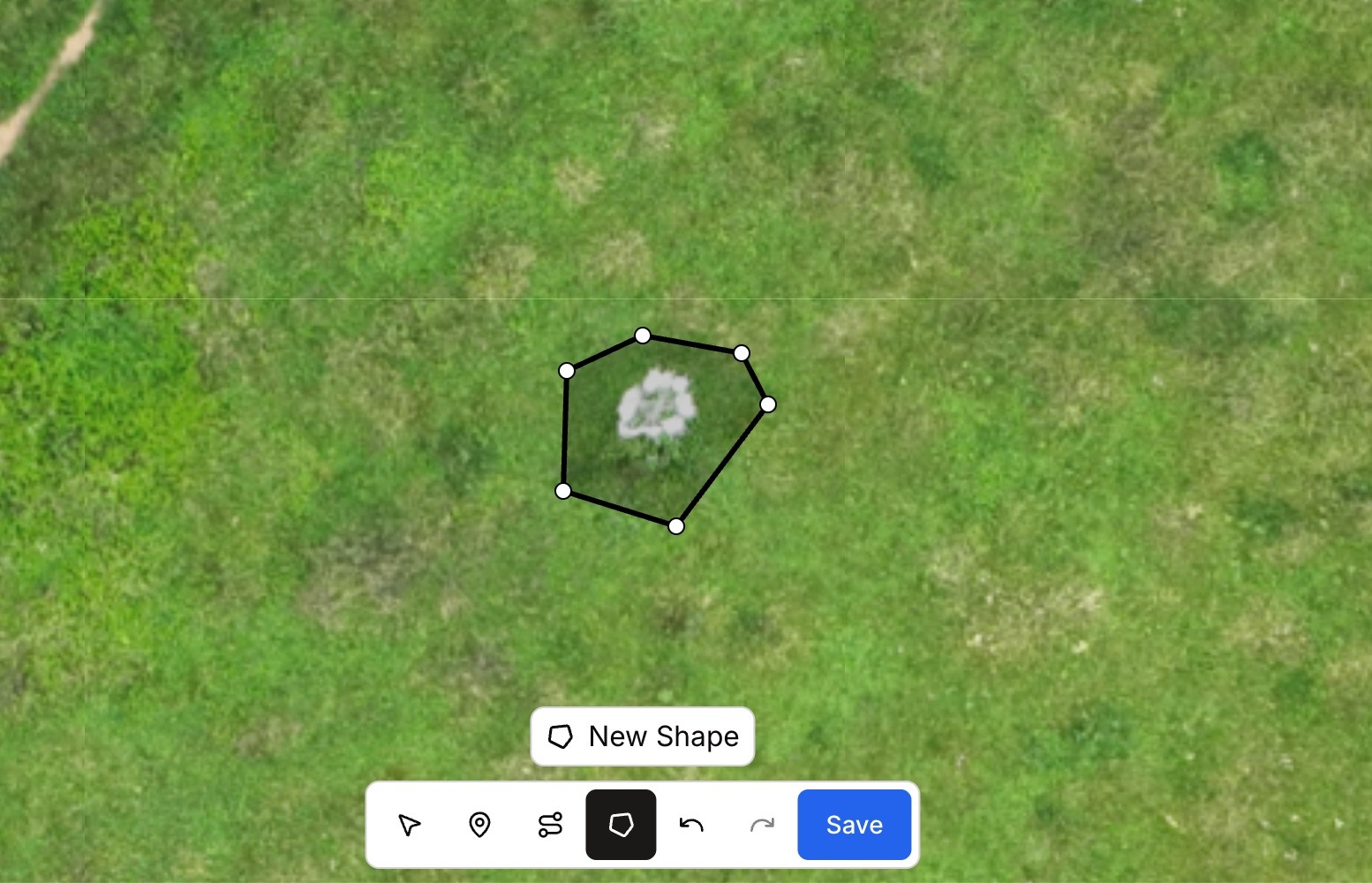

From the toolbar, select the Shape Tool.
Draw the shape around the area you want excluded.

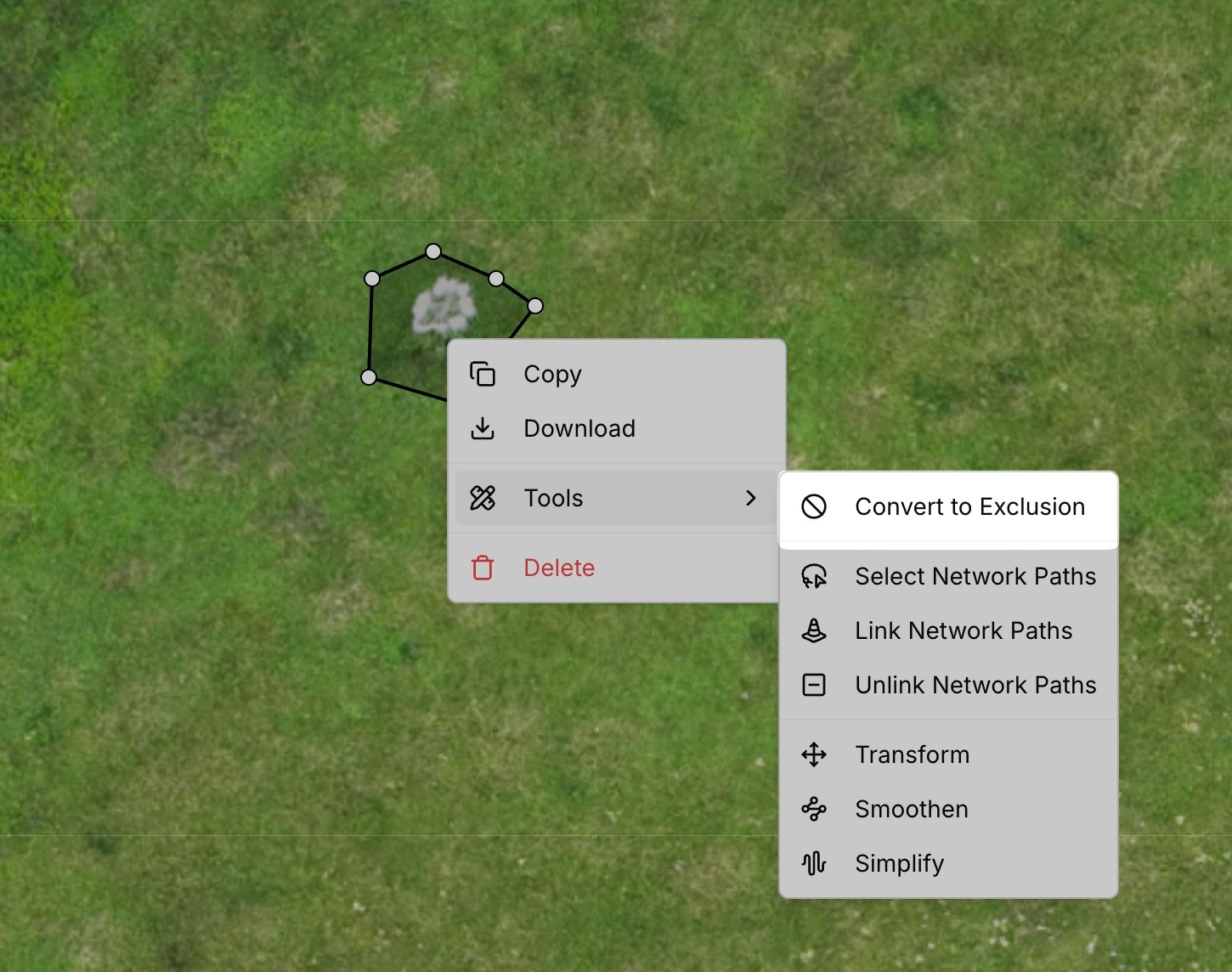

Right-click the shape (or use the right-hand menu) and select Convert to Exclusion.
The zone will turn red and display an information pop-up.
Smoothening shapes makes for more reliable Area Path Generation and more precise and thorough coverage.

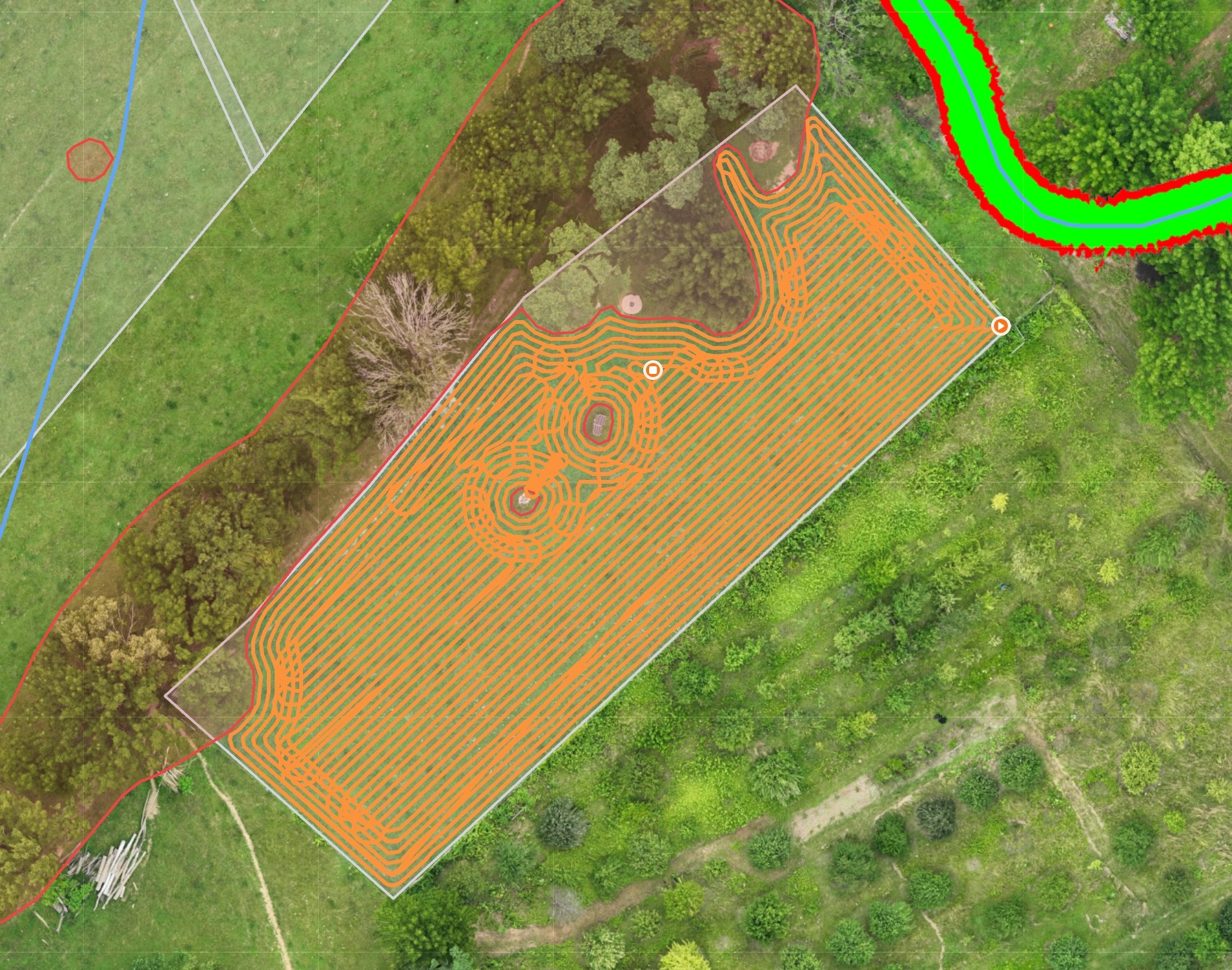

Once exclusions are in place, draw an area shape and use Create Area Path. The path generator will automatically avoid excluded areas.
After Area Path Generation, be sure to double check and make sure the tool did not pass through any exclusion zones. If so, you can regenerate or manually adjust the path.
Details
Edit like any shape: drag points, resize, rename, delete, or convert back to a regular shape.
Smooth or simplify shapes for better performance and more accurate path generation.
Area generation tools automatically avoid excluded areas when creating mowing or coverage paths.

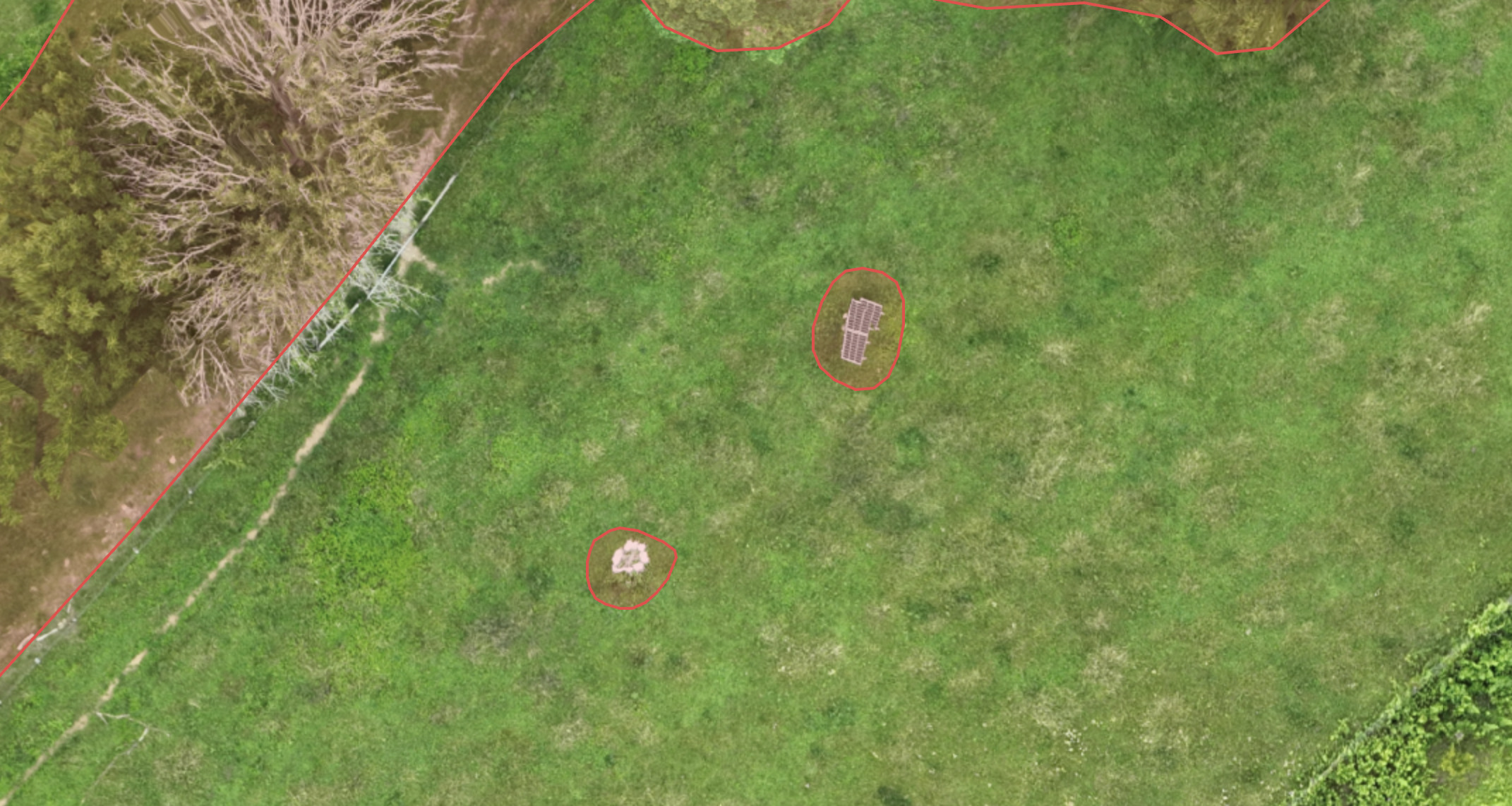

Useful for excluding trees, ditches, buildings, or irregular obstacles.
Limitations
Exclusion Zones only affect path generation, not robot navigation.
Burros can still travel through excluded areas if manually routed or during autonomy. Exclusions are not “hard barriers” — they do not physically block Burro movement.
Users should avoid manually drawing or editing paths through exclusion zones.
Complex or unsimplified shapes may cause slower rendering or minor path overlaps.
Best Practices
Smooth exclusion shapes for more reliable path generation.
Create exclusions before defining your main area for best results.
Smoothened shapes provide more reliable path generation results.
For complex or irregular obstacles, consider recording a path directly with a Burro, uploading it, and then converting it into a shape → exclusion zone for the most accurate representation.
Avoid making very complex and jagged edges; this can impact the outcome and performance of the area generation tool.
